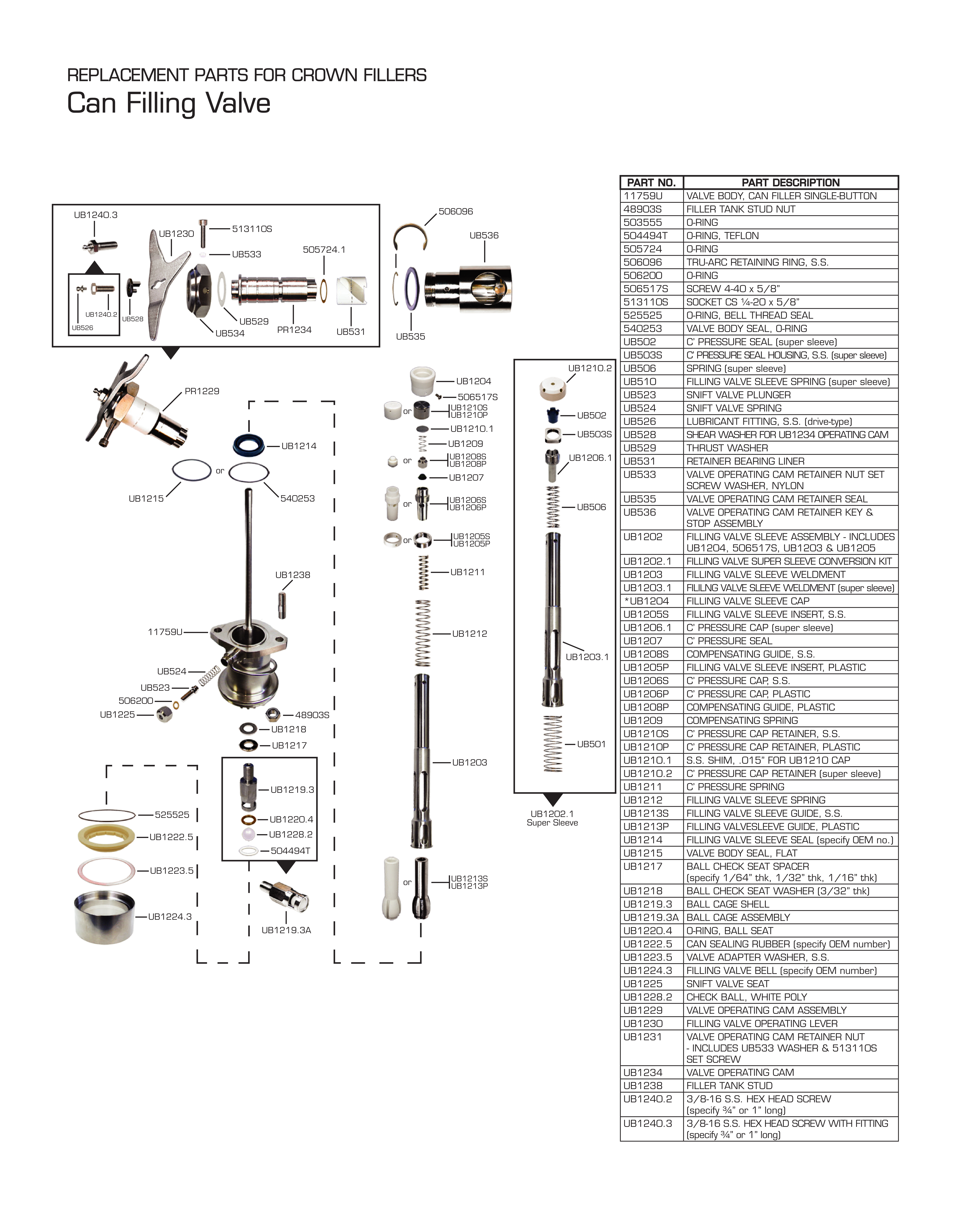

Crown — Can Filling Valve Parts

11759U

Valve Body, Can Filler Single-Button

+ Add

48903S

Filler Tank Stud Nut

+ Add

503555

O-Ring

+ Add

504494T

O-Ring, Teflon

+ Add

505724

O-Ring

+ Add

506096

Tru-Arc Retaining Ring, S.S.

+ Add

506200

O-Ring

+ Add

506517S

Screw 4-40 x 5/8"

+ Add

513110S

Socket CS 1/4-20 x 5/8"

+ Add

525525

O-Ring, Bell Thread Seal

+ Add

540253

Valve Body Seal, O-Ring

+ Add

UB502

C' Pressure Seal (super sleeve)

+ Add

UB503S

C' Pressure Seal Housing, S.S. (super sleeve)

+ Add

UB506

Spring (super sleeve)

+ Add

UB510

Filling Valve Sleeve Spring (super sleeve)

+ Add

UB523

Snift Valve Plunger

+ Add

UB524

Snift Valve Spring

+ Add

UB526

Lubricant Fitting, S.S. (drive-type)

+ Add

UB528

Shear Washer for UB1234 Operating Cam

+ Add

UB529

Thrust Washer

+ Add

UB531

Retainer Bearing Liner

+ Add

UB533

Valve Operating Cam Retainer Nut Set Screw Washer, Nylon

+ Add

UB535

Valve Operating Cam Retainer Seal

+ Add

UB536

Valve Operating Cam Retainer Key & Stop Assembly

+ Add

UB1202

Filling Valve Sleeve Assembly - Includes UB1204, 506517S, UB1203 & UB1205

+ Add

UB1202.1

Filling Valve Super Sleeve Conversion Kit

+ Add

UB1203

Filling Valve Sleeve Weldment

+ Add

UB1203.1

Filling Valve Sleeve Weldment (super sleeve)

+ Add

UB1204

Filling Valve Sleeve Cap

+ Add

UB1205S

Filling Valve Sleeve Insert, S.S.

+ Add

UB1206.1

C' Pressure Cap (super sleeve)

+ Add

UB1207

C' Pressure Seal

+ Add

UB1208S

Compensating Guide, S.S.

+ Add

UB1205P

Filling Valve Sleeve Insert, Plastic

+ Add

UB1206S

C' Pressure Cap, S.S.

+ Add

UB1206P

C' Pressure Cap, Plastic

+ Add

UB1208P

Compensating Guide, Plastic

+ Add

UB1209

Compensating Spring

+ Add

UB1210S

C' Pressure Cap Retainer, S.S.

+ Add

UB1210P

C' Pressure Cap Retainer, Plastic

+ Add

UB1210.1

S.S. Shim, .015" for UB1210 Cap

+ Add

UB1210.2

C' Pressure Cap Retainer (super sleeve)

+ Add

UB1211

C' Pressure Spring

+ Add

UB1212

Filling Valve Sleeve Spring

+ Add

UB1213S

Filling Valve Sleeve Guide, S.S.

+ Add

UB1213P

Filling Valve Sleeve Guide, Plastic

+ Add

UB1214

Filling Valve Sleeve Seal (specify OEM no.)

+ Add

UB1215

Valve Body Seal, Flat

+ Add

UB1217

Ball Check Seat Spacer (specify 1/64" thk, 1/32" thk, 1/16" thk)

+ Add

UB1218

Ball Check Seat Washer (3/32" thk)

+ Add

UB1219.3

Ball Cage Shell

+ Add

UB1219.3A

Ball Cage Assembly

+ Add

UB1220.4

O-Ring, Ball Seat

+ Add

UB1222.5

Can Sealing Rubber (specify OEM number)

+ Add

UB1223.5

Valve Adapter Washer, S.S.

+ Add

UB1224.3

Filling Valve Bell (specify OEM number)

+ Add

UB1225

Snift Valve Seat

+ Add

UB1228.2

Check Ball, White Poly

+ Add

UB1229

Valve Operating Cam Assembly

+ Add

UB1230

Filling Valve Operating Lever

+ Add

UB1231

Valve Operating Cam Retainer Nut - Includes UB533 Washer & 513110S Set Screw

+ Add

UB1234

Valve Operating Cam

+ Add

UB1238

Filler Tank Stud

+ Add

UB1240.2

3/8-16 S.S. Hex Head Screw (specify 3/4" or 1" long)

+ Add

UB1240.3

3/8-16 S.S. Hex Head Screw with Fitting (specify 3/4" or 1" long)

+ Add
