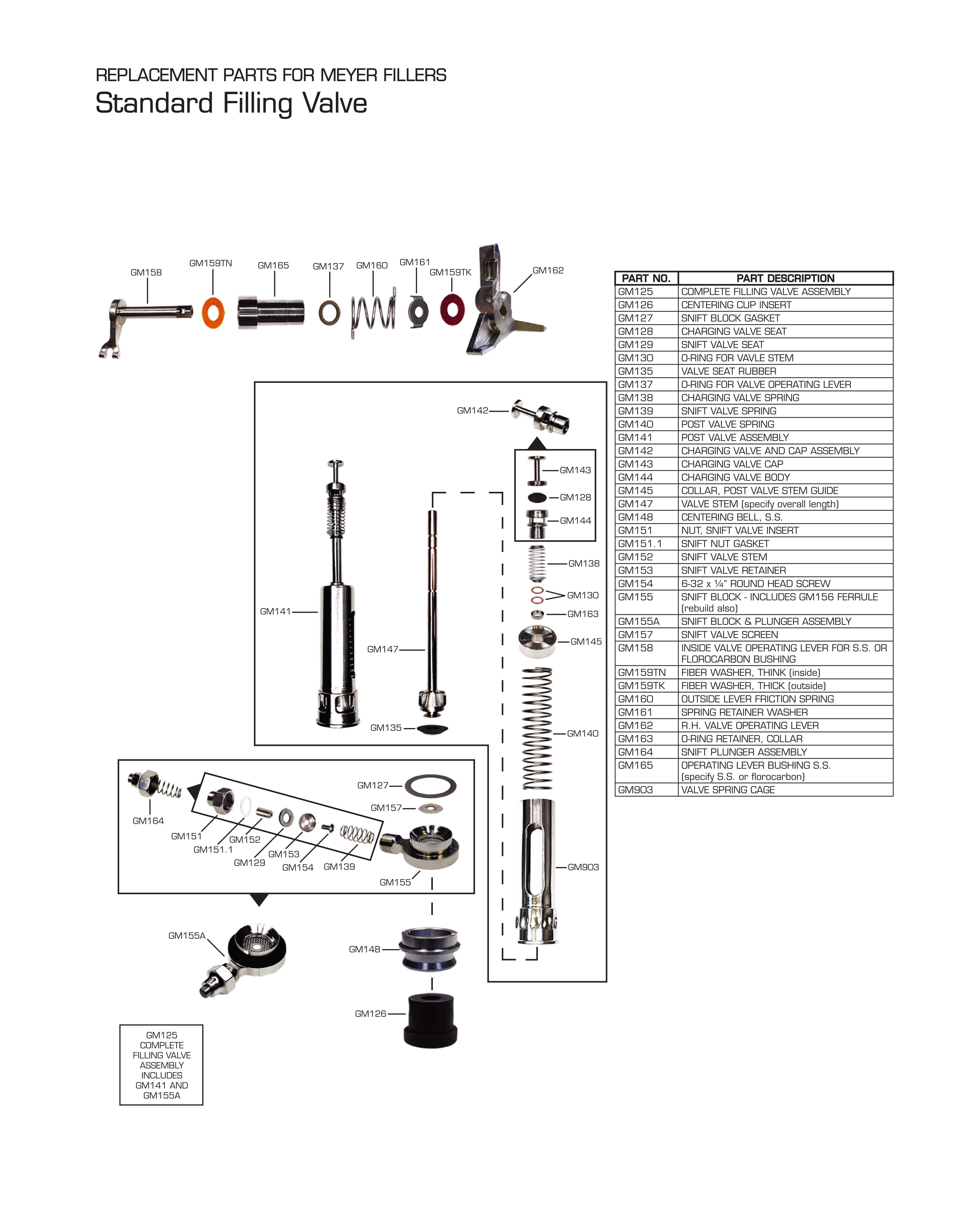

Meyer — Standard Filling Valve Parts

GM125

Complete Filling Valve Assembly

+ Add

GM126

Centering Cup Insert

+ Add

GM127

Snift Block Gasket

+ Add

GM128

Charging Valve Seat

+ Add

GM129

Snift Valve Seat

+ Add

GM130

O-Ring for Valve Stem

+ Add

GM135

Valve Seat Rubber

+ Add

GM137

O-Ring for Valve Operating Lever

+ Add

GM138

Charging Valve Spring

+ Add

GM139

Snift Valve Spring

+ Add

GM140

Post Valve Spring

+ Add

GM141

Post Valve Assembly

+ Add

GM142

Charging Valve and Cap Assembly

+ Add

GM143

Charging Valve Cap

+ Add

GM144

Charging Valve Body

+ Add

GM145

Collar, Post Valve Stem Guide

+ Add

GM147

Valve Stem (specify overall length)

+ Add

GM148

Centering Bell, S.S.

+ Add

GM151

Nut, Snift Valve Insert

+ Add

GM151.1

Snift Nut Gasket

+ Add

GM152

Snift Valve Stem

+ Add

GM153

Snift Valve Retainer

+ Add

GM154

6-32 x 1/4" Round Head Screw

+ Add

GM155

Snift Block - Includes GM156 Ferrule (rebuild also)

+ Add

GM155A

Snift Block & Plunger Assembly

+ Add

GM157

Snift Valve Screen

+ Add

GM158

Inside Valve Operating Lever for S.S. or Florocarbon Bushing

+ Add

GM159TN

Fiber Washer, Thin (inside)

+ Add

GM159TK

Fiber Washer, Thick (outside)

+ Add

GM160

Outside Lever Friction Spring

+ Add

GM161

Spring Retainer Washer

+ Add

GM162

R.H. Valve Operating Lever

+ Add

GM163

O-Ring Retainer, Collar

+ Add

GM164

Snift Plunger Assembly

+ Add

GM165

Operating Lever Bushing S.S. (specify S.S. or florocarbon)

+ Add

GM903

Valve Spring Cage

+ Add
